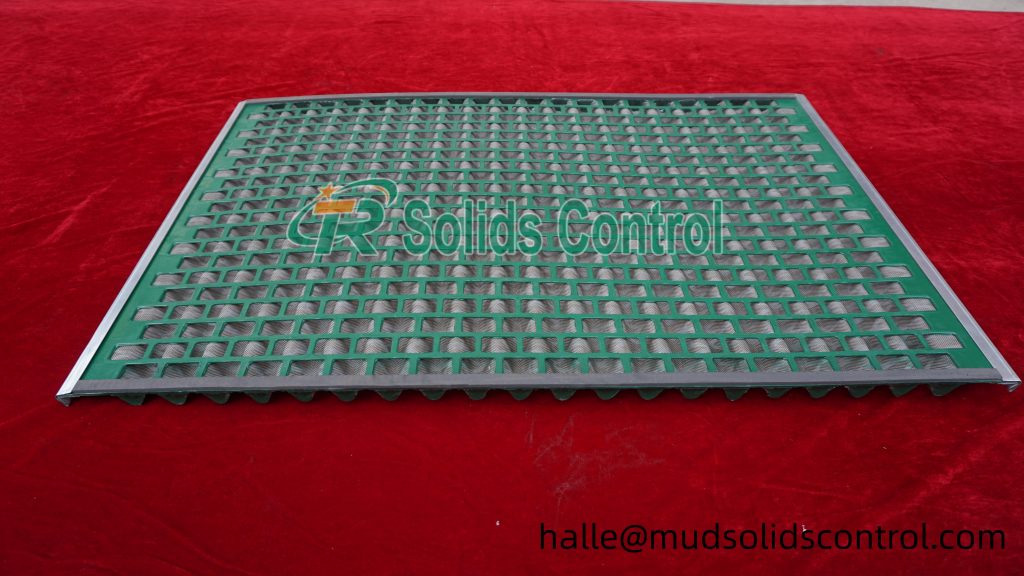

Shale Shaker Screen for Mud Shale Shaker
In petroleum drilling operations, the solids control system undertakes the important task of drilling fluid purification and solid phase separation. As the first-stage processing equipment, the mud shale shaker is used to remove large particle cuttings from drilling fluid. The shale shaker screen is the core filter medium and the most consumed wearing part. The screen quality directly affects mud purification effect, processing capacity and overall construction cost.
During operation, the shale shaker uses high-frequency vibration to distribute mud evenly on the screen surface and complete solid-liquid separation through mesh holes. Solid impurities such as cuttings and sediment are intercepted and discharged, while qualified drilling fluid flows back to the mud tank for recycling. High-quality screens feature good permeability and anti-blocking performance to ensure continuous high-flow operation. Inferior screens easily cause wire breakage, deformation and sand leakage, resulting in mud waste and severe wear of downstream solids control equipment.
How to select a suitable shale shaker screen for working conditions?
Choosing a suitable shale shaker screen should not only depend on size. It is necessary to consider drilling environment, mud density, sand content and shaker model comprehensively. For material selection, 304 or 316 stainless steel can be selected according to mud corrosion degree. Mesh count should balance mud flow and screening accuracy. Medium and low mesh is suitable for shallow well and ordinary mud, while high mesh composite screen is more applicable for deep well and high-density viscous mud. It is also required to confirm the installation type to match the screen frame perfectly and avoid slurry leakage and screen tearing.
Why do shale shaker screens often block and get damaged easily?
Frequent screen damage and blocking are mainly caused by improper installation, wrong selection and lack of daily maintenance. Uneven tension during installation leads to local tearing under long-term high-frequency vibration. Unmatched mesh size easily causes mud accumulation and hole blocking. If residual mud cake is not cleaned timely after operation, dried mud will block the mesh and accelerate aging and damage. Standard installation, reasonable model selection and regular cleaning can effectively prolong screen service life and reduce procurement and shutdown cost.
Xi’an Tianrui Petroleum Machinery specializes in the production of solids control equipment and consumables. We supply high-quality shale shaker screens with precise workmanship and stable structure. Our screens are compatible with various shaker models and support customized sizes. Factory direct supply guarantees stable quality and fast delivery, providing reliable solids control solutions for global oilfield drilling projects.
