What are the different kinds of Shale shaker screens that you can use?
In the drilling fluid solids control system, the Shaker Screen is the first critical component for solid-liquid separation, and its design directly impacts filtration efficiency. Understanding different types of Shale Shaker Screen helps make optimal selections based on specific operating conditions.
Currently, the most widely used type is the Hook strip Screen Panel. Composed of one or more layers of screen cloth bonded to a metal grid plate, it is tensioned via bolts and secured to the shaker basket sides with hook strips during installation, forming a flat and taut working surface on the shaker deck.

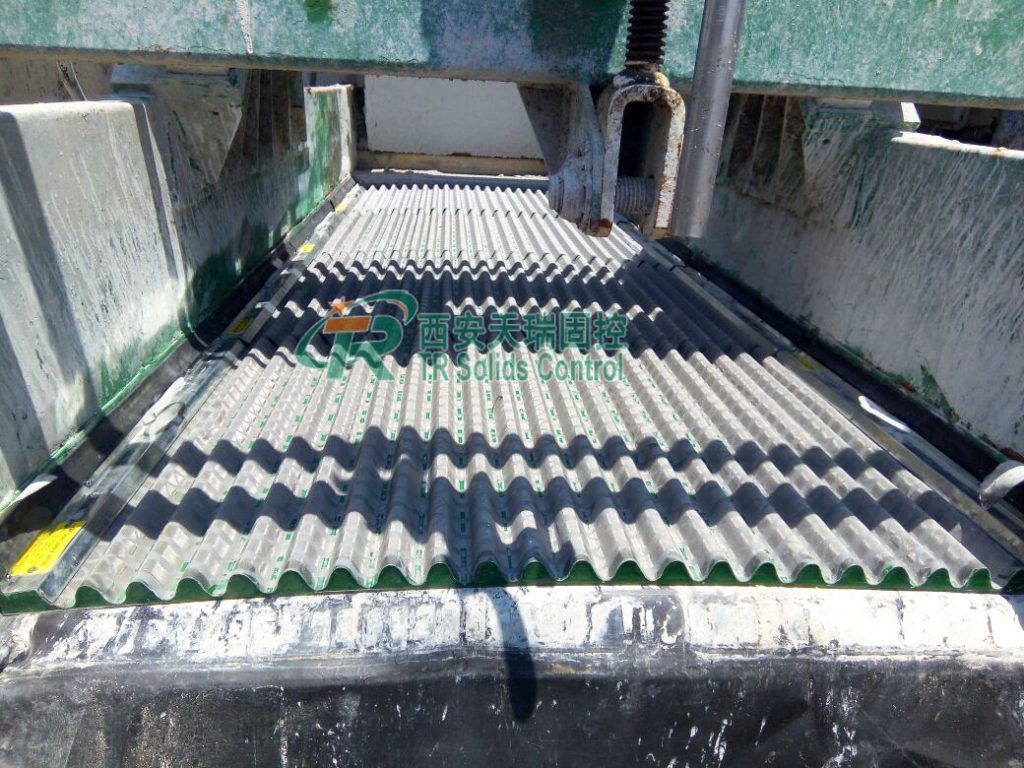

Another newer design is the Pyramid Screens. Unlike flat screen surfaces, it features a unique wavy structure that increases the effective screening area by approximately 40%. However, it is important to note that its advantages are typically fully realized when fully submerged in drilling fluid.
For applications requiring heavy-load resistance or frequent replacements, the Frame Panel Shaker Screen is a common choice. Equipped with a robust integrated frame, this screen offers excellent structural stability and is often used as a complete replacement component for the shaker deck.
Industry analysis indicates that each type of Shale Shaker Screen has its specific application scenarios. From the classic hook strip design to the high-capacity pyramid type, selecting the right screen is a fundamental step in optimizing solids control system performance.
How to maintain the shale shaker for life
In the drilling fluid solids control system, the service life of the Shale Shaker Screen directly affects production efficiency and operational costs. Industry data shows that even under optimal operating conditions, the screen is subjected to significant stress. Through standardized operation and daily maintenance, its service life can be effectively extended.
Experts point out that the core of Shaker Screen maintenance lies in the following aspects:
Firstly, keeping the screen surface clean and dry is crucial. Timely cleaning after operation to prevent solid materials from caking can maintain unobstructed screen openings.Secondly, during installation, replacement, or maintenance, careful operation is required to avoid mechanical damage to the screen structure and tensioned surface.In addition, uniform feeding to avoid local overload is an important measure to prevent premature fatigue and damage of the Shaker Screen.
At the same time, strictly maintaining the correct screen tension in accordance with equipment specifications is the foundation for ensuring screening efficiency and screen service life.
It is worth noting that in addition to the design and material of the Shale Shaker Screen itself, on-site natural operating conditions (such as material characteristics and processing capacity) also continuously affect screening efficiency and handling capacity. This urges users to make informed choices based on operating conditions at the initial purchase stage, matching the most suitable screen type from the source.
The industry consensus is that the careful maintenance and correct selection of Shale Shaker Screens are effective ways to improve the stability and economy of the entire solids control system.
Optimizing shale Shaker Screen Installation
As the core component of shale shaker screening equipment, the installation method of the Shaker Screen directly affects screening efficiency and operational stability. In recent years, with increasing demands for screening precision in industries such as mining and oil and gas development, the installation technology for Shale Shaker Screens has shown a trend of diversified development. Different types of screens are now paired with dedicated installation solutions, which has become an important direction for technological optimization in the industry.

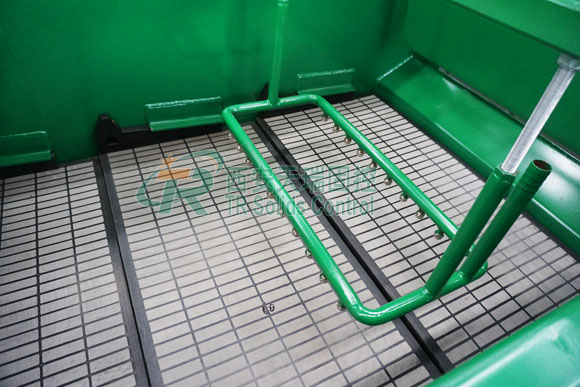

Currently, mainstream Shaker Screen installation methods include hook strip type, wedge tension type, bolt fixation type, and others, all closely related to the screen’s design and material. Among these, hook strip installation is further divided into top hook strip and bottom hook strip forms. Bottom hook strip tensioning devices are commonly used for smaller Shaker Screens at the bottom of desanders and desilters. These achieve a secure fixation by tightening and then reverse-hooking, offering excellent sealing performance for the Shale Shaker Screen.
Wedge tension installation is widely used in Shale Shaker Screens from well-known brands like the Derrick series. Their matching steel frames come with pre-tensioning devices, requiring fewer spare parts and featuring a simple installation process. For combined Shaker Screens equipped on 4×5 type shale shaker screens, an installation method combining tension hooks and bolts is employed, allowing the screen to be securely suspended.
The installation and removal of hydraulically pressed screens are even more convenient. Simply operating a control lever allows for immediate screen release. Some shale shaker screen manufacturers combine hooks and pressure. This means the screen is tensioned by hooks and secured by bolts, achieving a tight and stable installation.
The iterative development of Shale Shaker Screen installation technology consistently revolves around the core needs of the screens. Whether optimizing traditional installation methods or applying new technologies, the goals are to enhance screen compatibility and extend service life, providing more reliable technical support for screening operations across various industries.
Key to Drilling Solids Control: Understanding Shale Shaker Screen Mesh Sizes
In a drilling solids control system, the Shale Shaker Screen serves as the primary processing equipment, and the selection of its mesh size directly affects the cuttings separation efficiency. This article briefly introduces the mesh sizes of Shaker Screens and their applications.
Screen mesh sizes are typically indicated by API numbers, which correspond to the screen’s filtration cut point range. According to the API RP13C standard, different mesh sizes of screens are required for different drilling stages. Common Shale Shaker Screen mesh sizes range between API 100 and API 170, accounting for approximately 70% of the total usage, with API 140 and API 170 being particularly widely used.
It is important to note that a Shale Shaker Screen is not a single-layer wire mesh. It is usually composed of 2-3 layers of composite wire mesh, and its separation characteristics differ from those of a single-layer mesh. Both the cut point and permeability are specially designed to meet the specific separation range specified by API standards.
How to select the appropriate screen? It is recommended to first consult a drilling mud engineer. In the absence of such support, the selection can be made based on drilling conditions, mud properties, processing capacity, and desired cuttings discharge effect. Accurate operating parameters help recommend a matching Shaker Screen model.
Correct understanding of screen mesh sizes helps optimize the operational efficiency of the Shale Shaker Screen and provides reliable solids control support for drilling operations.
The maintenance of the shaker screen is aimed at enhancing the performance of the shale shaker.
In the drilling mud circulation system, the Shale Shaker serves as the primary solid control equipment, and its performance directly impacts the workload and service life of subsequent equipment such as desanders, desilters, and even centrifuges. Among these components, the Shaker Screen is the core element determining screening efficiency. Sound Shaker Screen maintenance practices are crucial for sustaining overall system effectiveness and minimizing unplanned downtime.
Shaker Screens: The First Line of Defense for System Efficiency
The primary task of a Shale Shaker Screen is to efficiently separate large solid particles from drilling mud. If the Shaker Screen fails to operate effectively, oversized particles will enter downstream equipment, increasing their burden and potentially causing damage. Therefore, selecting the finest possible mesh screen (while avoiding mud loss) tailored to specific formations and drilling mud properties, and optimizing Shale Shaker parameters, forms the foundation for enhancing initial separation efficiency.
Key Tips for Shaker Screen Maintenance and Usage
Timely Inspection and Replacement: Strengthen supervision and immediately replace damaged or severely worn Shaker Screens to prevent compromised screening quality.
Proper Cleaning Methods: Avoid using hard objects such as brushes or sticks to scrape the Shale Shaker Screen during cleaning, as this may cause damage. Currently, high-pressure water cleaning is widely adopted on-site due to its easy access to water sources and proven effectiveness.
Careful Storage, Transportation, and Handling: The wire mesh of Shaker Screens is highly susceptible to damage from collisions with hard objects. Exercise caution during storage, transportation, and installation to avoid improper placement or handling.
No Unauthorized Bypassing: Unless in emergency situations, do not operate the system without the Shale Shaker. This protects downstream equipment and maintains stable mud performance.
Ensure Equipment Integrity: Regularly inspect the Shale Shaker itself to ensure components such as rubber buffer blocks and tensioning devices are intact and properly installed. These factors directly influence the Shaker Screen’s tension level and service life.
In summary, meticulous maintenance of Shaker Screens is a fundamental step in ensuring the efficient and stable operation of Shale Shakers. Through standardized operation and scientific maintenance, not only can the full solid control potential be realized, but also a solid guarantee is provided for the smooth operation of the entire drilling mud treatment system.
TR Solids Control’s custom-made shaker screens are ready for shipment.
TR Solids Control’s custom-made shaker screens are now ready for shipment after completing production.
These custom shaker screens are precisely sized at 750*900, fully meeting the customer’s actual operational requirements. Made from high-quality 316 wire mesh, the screens not only offer excellent corrosion and wear resistance but also provide high screening precision and excellent permeability. They can efficiently separate materials and improve operational productivity. The material properties ensure stable screening performance under complex working conditions, significantly extending the service life of the screens.
TR has long been dedicated to providing personalized customization services for shale shaker screens, deeply catering to the diverse needs of different customers. The customization service covers multiple core aspects. In addition to accurately matching the dimensions specified by customers, it also allows for flexible adaptation of wire mesh materials and optimized screen structure design based on the material characteristics, working conditions, and screening precision requirements of the customer’s actual operations. A professional technical team oversees the entire customization process—from needs communication and solution design to sample confirmation and batch production—ensuring that every custom screen precisely fits the customer’s shaker equipment and fully meets on-site operational requirements.
After rigorous quality testing, this custom shaker screen meets all standard specifications and is ready for immediate use. The products have now been packaged and are awaiting scheduled shipment to the customer’s designated location.
TR Solids Control manufacture and supply replacement Ml-Swaco Shaker Screen as per APl standards.
In oil and gas drilling operations, the shale shaker screen serves as the first and most critical line of defense in the solids control system. It directly determines the cleanliness and reusability of drilling fluid, influencing overall operational efficiency and costs.
Professional manufacturer of replacement products, Xi’an TR Solids Control Company proudly presents its Tianrui brand shaker screens, which have obtained certification to the American API RP 13C standard and are compatible with mainstream shaker models such as Swaco. This series of shaker screens boasts the following outstanding performance advantages:
Durable Performance: Constructed with high-quality 304 or 316 stainless steel mesh, the screens offer excellent corrosion and wear resistance, ensuring a long service life even under harsh drilling conditions.
Efficient Screening: Featuring precision lamination technology and scientific aperture design, the screens achieve accurate separation even at high throughput, effectively removing fine harmful solids from drilling fluid.
Wide Compatibility: The product line includes various types such as steel frames and PT frames, compatible with Swaco Mongoose series and other shaker models to meet diverse customer screening needs.
Reliable Operation: Manufactured in strict compliance with API standards, the screens maintain high tension and resistance to deformation, ensuring stable operation and consistent screening efficiency over extended periods to support uninterrupted drilling operations.
Adopting mechanized and standardized production processes, the company is committed to delivering shaker screens with stable performance and consistent quality. High-quality shale shaker screens are essential components for safeguarding drilling fluid performance and reducing overall drilling costs.
Designed for Derrick FLC500 Series! 500 PWP Shaker Screen Launched
In the field of shale shaker screens, compatibility and reliability have always been the key points that customers are most concerned about. Recently, the 500 PWP vibrating screen specially designed for the Derrick FLC500 series shale shaker screen has been officially launched. This shaker screen features precise compatibility, excellent manufacturing quality, and the ability to enhance efficiency.
This newly introduced screen is available in both flat (PWP) and pyramid (PMD) surface profiles, providing a perfect replacement match for Derrick FLC500 series shale shakers. Manufactured in China, the product is produced and tested in strict compliance with API RP 13C, ISO 9001:2015, and API Q1 standards, ensuring reliable quality assurance for every screen.
Structurally, the 500 PWP screen is composed of 2 to 3 layers of SS304 or SS316 stainless steel wire mesh bonded to a sturdy steel backing plate, offering outstanding overall strength. Its innovative single-side quick-tensioning and locking system significantly reduces screen changeover time, greatly enhancing maintenance efficiency. Through flexible combinations of different mesh counts and backing plate thicknesses, the product achieves maximum screening area while ensuring structural durability.
Key product parameters : Material: SS304 / SS316 Stainless Steel
Mesh Range: 20 – 325 Model: DF / DX Standard Dimensions: 1053 × 697 mm Color: Green
The advantages of this screen are significant: premium stainless steel materials extend service life; the quick-locking system improves operational efficiency; excellent screening and solids retention capabilities increase shaker processing capacity while effectively reducing fluid loss. It maintains high flow rates without compromising separation accuracy, and coupled with competitive cost control, offers outstanding overall value. Currently, the product is available in ample stock and can respond promptly to customer demands, providing shale shaker users with an efficient and reliable high-quality alternative.
High-Quality Mongoose Shaker Screen Replacement Screens
TR Solid Control, as a professional manufacturer of solid control equipment, has launched a new line of Mongoose Shaker Screen replacement screens, which are widely compatible with SWACO MONGOOSE PRO and MEERKAT PT series shale shakers. TR is dedicated to providing customers with durable and efficient screen solutions that meet industry standards and enhance operational efficiency.
Mongoose Shaker Screens are made of 304, 316, or 316L stainless steel mesh, offering excellent corrosion resistance and wear resistance, ensuring long-term performance in harsh working environments. TR Solid Control’s screens comply with API RP 13C, API Q1, and ISO 9001:2015 standards, guaranteeing the quality and performance of every screen.

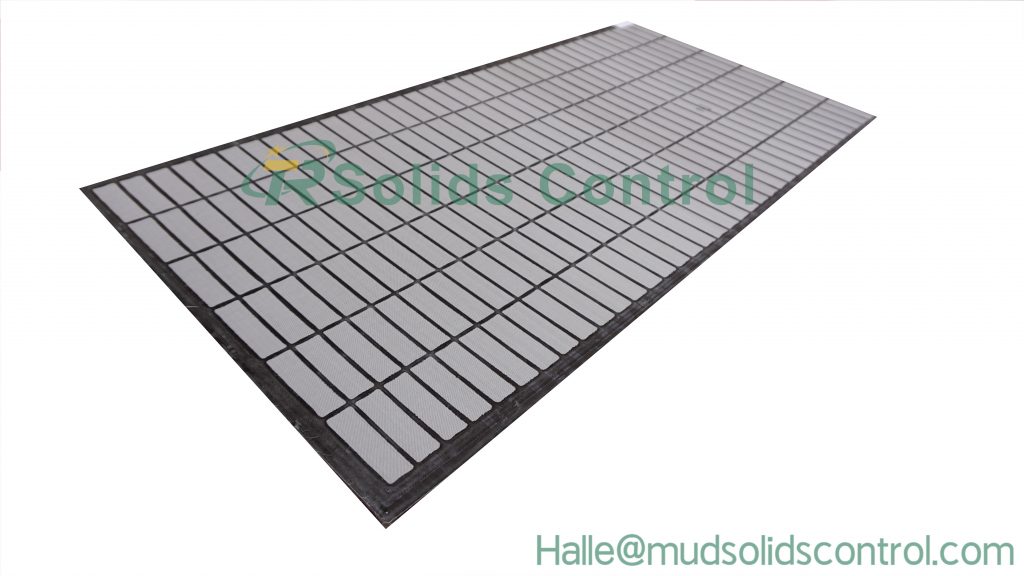

Mongoose Shaker Screen
These replacement screens are available in two frame types: steel frame and PT frame, allowing customers to choose according to their needs. Each Mongoose Shaker screen unit typically includes 4 pre-tensioned screens, while the MEERKAT series shale shakers are equipped with 3 pre-tensioned screens. A variety of mesh models are available, including XR, XL, HC, and MG, to meet the diverse requirements of customers.
TR Solid Control is not only a manufacturer of Mongoose Screens but also offers ample inventory and professional after-sales service, ensuring fast screen replacement and installation for customers. The company sells Mongoose Pro Shaker Screens globally and provides customized solutions to meet specific needs.
TR Solid Control’s Shaker Screens are widely used in mud cleaning, solid control, and other related fields, making them an ideal choice for customers. If you are looking for high-quality replacement screens, TR Solid Control will provide you with the most cost-effective products and services.
TR Solid Control, a trusted manufacturer of Shaker Screens and Shale Shaker Screens, looks forward to offering efficient solutions for your engineering projects.
Urethane Panel Screen Enhances Shaker Screen Application Experience
TR Solids Control recently launched the TH48-30 x 0.1 MT 1040×700 Urethane Panel Screen, offering a new performance choice in the field of Shaker Screens and Shale Shaker Screens. Made from high-quality polyurethane panels, this Urethane Panel Screen features excellent surface performance, demonstrating outstanding advantages in various solids control applications.
Compared to traditional woven shaker screens, this polyurethane fine screen offers significantly stronger wear resistance and a greatly extended service life, making it a preferred alternative for many users replacing perforated shaker screens. Notably, it provides excellent anti-clogging performance, enabling efficient separation of materials that were previously difficult or even impossible to screen, addressing many pain points in Shale Shaker Screen applications.
This Urethane Panel Screen achieves extremely high screen mesh precision, reaching as fine as 0.043mm, allowing for accurate separation and adaptability to various dry and wet screening scenarios. Additionally, it features low noise and easy maintenance, making operation more worry-free and further enhancing the cost-effectiveness of Shaker Screen and Shale Shaker Screen applications. It also surpasses traditional woven screens in acid and alkali resistance, broadening its applicability across different environments.
Urethane Panel Screen offers a variety of hole patterns, including standard circular, square, and rectangular shapes, with customization available based on client needs. Types include polyurethane fine screens, tensioned polyurethane screens, and other specifications. Sizes can be designed as required, and colors such as red, yellow, and green are available to meet diverse application needs.
Representative from TR Solids Control stated that the launch of this Urethane Panel Screen is based on precise research and development in response to market demands for high-performance Shaker Screens and Shale Shaker Screens. The company will continue to support the efficient development of the solids control industry with high-quality products.
